PASSTHROUGH
| 1080p | 60, 120, 144, 240 |
| 1440p | 60, 120, 144 |
| 4K | 60, 120, 144 |
| 8K | – |
| HDR10(High Dynamic Range, 10-bit) !Supports passthrough of High Dynamic Range video with 10-bit color depth in the HDR10 standard for more detail in highlights and shadows. HDR10規格の10ビット色深度のハイダイナミックレンジビデオのパススルーをサポートし、ハイライトとシャドウのディテールをより詳細にします。 | レ |
| VRR(Variable Refresh Rate) Variable Refresh Rate signals pass through the device, enabling smoother gameplay with reduced tearing and stutter on supported displays. 可変リフレッシュレート信号がデバイスを通過するため、サポートされているディスプレイでのティアリングやスタッターを減らして、よりスムーズなゲームプレイが可能になります。 | レ |
| ALLM(Auto Low Latency Mode) Auto low latency mode signals pass through the device to engage game mode on compatible displays for the lowest possible latency. 自動低遅延モードの信号がデバイスを通過し、互換性のあるディスプレイでゲームモードを作動させ、可能な限り低いレイテンシーを提供します。 | レ |
| HDMI Input/Output(HDMI passthrough version) The HDMI version used for passthrough. Higher versions support greater bandwidth, enabling higher resolutions and frame rates. パススルーに使用されるHDMIバージョン。より高いバージョンはより大きな帯域幅をサポートし、より高い解像度とフレームレートを可能にします。 | 2.1 |
CAPTURE
| 1080p | 30HDR,60HDR,120HDR,144,240 |
| 1440p | 30HDR,60HDR,120,144 |
| 4K | 30HDR,60,120,144 |
| HDR10 | レ |
| On-device tonemapping(HDR-to-SDR conversion) Converts HDR content to SDR for compatibility with non-HDR workflows while preserving image quality. HDR コンテンツを SDR に変換して、HDR 以外のワークフローとの互換性を確保しながら画質を維持します。 | レ |
CONNECTION
| Analog Line-in | レ |
| Connection | USB-C 3.2 Gen 2 10Gbps |
| Software(Supported apps) Compatible software applications that support capture, streaming, and recording with this device. サポートされているアプリ このデバイスでのキャプチャ、ストリーミング、および録音をサポートする互換性のあるソフトウェアアプリケーション。 | Elgato Studio, OBS, Meld, Discord, etc |
| Operating System Operating systems officially supported by the device. | Windows, Mac, iPad |
TECH SPECS
INPUT
HDMI (unencrypted)
OUTPUT
HDMI (lag-free passthrough)
RECORDING & PASSTHROUGH RESOLUTION
up to 4K144
View the full list of supported resolutions and fps here.
HDR10 SUPPORT
HDR capture is currently only available on Windows
DIMENSIONS
112 x 72 x 18 mm / 4.4 x 2.8 x 0.7 in
WEIGHT
91 g / 3.2 oz
IN THE BOX
Game Capture 4K X, USB 3.2 C-to-C cable (150 cm | 59 in), 8K HDMI cable (200 cm | 78.7 in)
SKU: 10GBH9901
SYSTEM REQUIREMENTS
OS
macOS 11, iPadOS 17 or later
CPU
Apple M1, Intel i5 4th-gen (i5-4xxx) quad-core or later
GPU
AMD, NVIDIA, Apple M1 or later
RAM
4GB
INTERFACE
USB 3.2 Gen 2 required (USB 3.2 Gen 1 works with reduced capture resolution)

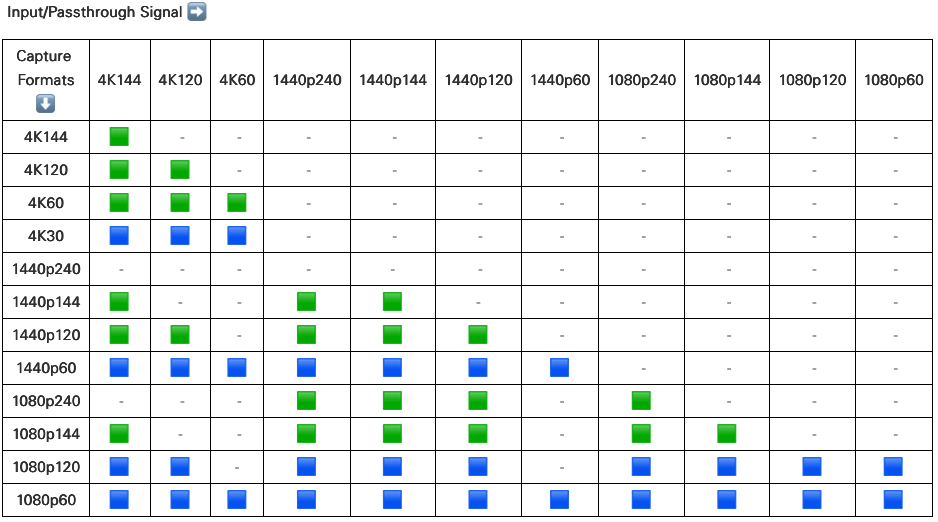

Elgato Game Capture 4K X — Supported Resolutions and Frame Rates

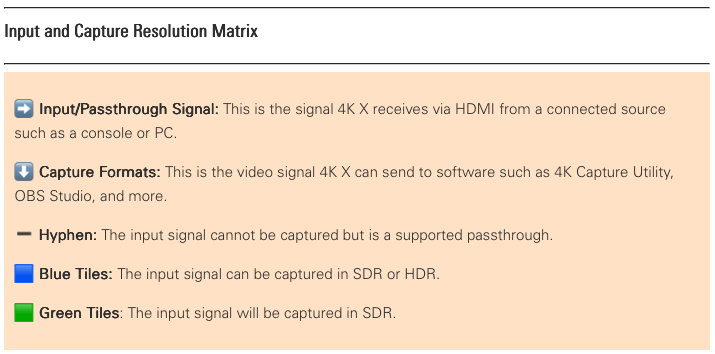

This is a list of supported passthrough and capture resolutions. For each input resolution, the supported capture resolution is shown as supported by 4K X.
These resolutions and frame rates do not consider software and may change depending on the software 4K X is used.
Note: USB 3.2 Gen 1, USB 3.1 Gen 1, and USB 3.0 all offer speeds up to 5Gbps. This ensures they can smoothly support 4K video.

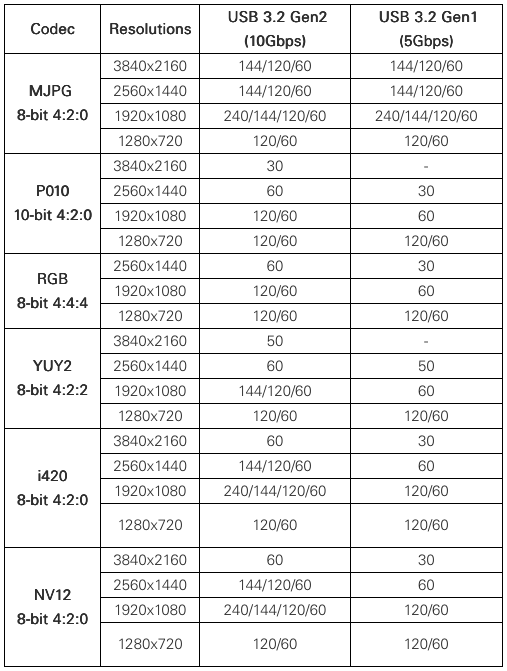

Detailed Capture Codec Specifications
Below is a detailed list of resolutions and frame rates that can be captured in a specific codec. The codec, resolution, and frame rate availability change depending on the USB port type that 4K X is connected to.
Display Stream Compression (DSC)
4K X does not support the capture of video signals utilizing Display Stream Compression (DSC).
Early HDMI 2.1 monitors used DSC for higher resolution and frame rate capability. For example, monitors may use DSC to achieve 4K144Hz, while 4K120Hz does not use DSC.
If the passthrough is to a TV or monitor is working, but the captured video is black, DSC may be active.
Please try a lower resolution and/or frame rate.
Ultra Wide Support
With Firmware 1.7.13, Ultra Wide Support was added. The following resolutions are now supported.
- 3440×1440
- 2560×1080
HDR (High Dynamic Range)
4K X supports passthrough of HDR10 video and capture of 10-bit HDR video.
Windows:
An NVIDIA 10 series or later GPU is required for HDR 10 Bit recording in Windows 10/11, when using Elgato 4K Capture Utility. That recording will be in the HEVC format.
macOS:
HDR capture is not available for macOS, as macOS does not support the required video codec. HDR passthrough via HDMI is available. HDR video will be converted to SDR by 4K X before going to your Mac.
